Small Size high speed mixing machine SRL-Z200/500 hot mixer/cold mixer
Suit for which part?
This high speed mixing machine is widely used in Fine chemicals, fodder, electronics, food, hard materials, ceramic materials, biology, medicine, non-metal mining, building materials, coatings, printing, fertilizers and metal powders etc. For shear-sensitive crystalline powders, the bulk product is mixed and the liquid is mixed into a solid
Function of high speed mixer machine:
SRL-Z series mixing machine, mainly suit for various resin, for example, Polyethylene, polypropylene, polyvinyl chloride Ingredients, mixing, coloring, drying and ABS , polycarbonate etc. drying, devolatilization and other processes, can also be used for mixing phenolic resins.
The unit combines the hot mixing with the process, completes the hot-mixed materials, automatically enters the cold mix to cool, eliminates residual gases, and prevents agglomeration.
Technical Parameter of mixing machine:
| Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
| Total volume (L) Hot mix/cold mix | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
| Effective volume (L) | 75/160 | 150/320 | 225/390 | 375/650 | 600/1050 |
| Stirring speed (rpm) | 650/130/180 | 475/950/130 | 475/950/130 | 430/860/60 | 370/740/50 |
| Heating cooling method | Electric, Self-friction/water cooling |
| Mixing time (min) | 6-10 | 6-10 | 6-10 | 6-10 | 8-12 |
| Motor Power (kw) | 14/22/7.5 | 30/42/11 | 40/50/11 | 55/75/18.5 | 60/90 |
| Dimensions (mm) | 3780×1870×2250 | 4580×2240×2470 | 4580×2440×2570 | 4600×3000×4050 | 4850×3860×6550 |
| Weight (kg) | 3200 | 3400 | 4200 | 5800 | 8700 |

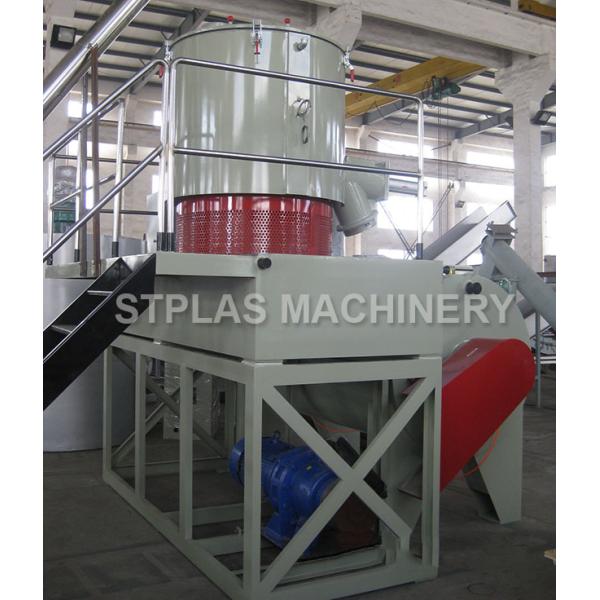

More Photos of PVC mixing machine:
